SUMMARY:



TLIBOT T1 Pro is a high‑agility humanoid robot developed by Sichuan TLIBOT (Tianlian Robotics).

It features 71 degrees of freedom, 450 Nm peak joint torque, 900°/s joint speed, and a deep‑squat payload exceeding 145 kg.



Standing 160 cm and weighing 43 kg, T1 Pro is engineered for industrial automation, logistics, entertainment, and research applications.

It is one of the most flexible humanoids in its class, with dancer‑level joint ranges and a maximum walking speed of 10 km/h.



EDITORIAL:



TLIBOT T1 Pro is part of China’s rapidly advancing humanoid robotics ecosystem.

Its combination of:



- 71 DoF

- extreme joint speeds (720–900°/s)

- high torque (up to 450 Nm)

- full‑body flexibility

- 145 kg squat capacity



makes it one of the most physically capable mid‑size humanoids available.



Unlike many research robots, T1 Pro is designed for real‑world deployment, with:



- 3D vision + LiDAR

- force‑feedback manipulation

- autonomous navigation

- voice interaction

- ROS2 + SDK support



Its lightweight 43 kg frame paired with high torque‑to‑weight ratio allows dynamic movement, fast walking, and strong manipulation — positioning it as a competitive platform in industrial and service robotics.



SPECIFICATIONS:



Dimensions & Build



- Height: 160 cm

- Weight: 43 kg (with battery)

- Materials: Aluminum + composite plastics

- Form factor: Full humanoid



Mobility



- Walking speed: up to 10 km/h (2.78 m/s)

- Dynamic balancing

- High‑speed joint actuation

- Dancer‑level flexibility



Degrees of Freedom



- Total: 71 DoF

- Arms: 7 DoF each

- Legs: 6 DoF each

- Waist: 3 DoF

- Head/Neck: 2 DoF



Actuation & Performance



- Max joint torque: 450 Nm

- Knee torque: 281 Nm

- Joint speed: 720°/s (up to 900°/s on select joints)

- Deep‑squat payload: >145 kg

- Single‑arm load: 8–10 kg



Range of Motion (examples)



- Hip: −25° to +142°

- Knee: −10° to +155°

- Waist:

  - Side: ±45°

  - Front/back: ±90°



Sensors



- 3D vision camera (1080p)

- Stereo vision

- LiDAR (optional)

- IMU

- Gyroscope

- Force/torque sensors

- Touch sensors



Compute & Software



- CPU: Intel i7 (13th Gen)

- GPU: NVIDIA Jetson AGX Orin (157 TOPS)

- OS / Middleware: ROS2

- SDK: Available (C++, Python)

- AI/ML: Reinforcement learning support



Battery & Power



- Battery: 44.4 V / 25 Ah

- Capacity: 1110–1250 Wh

- Runtime: ~4 hours

- Charging time: 2.5 hours

- Swappable battery: Yes



Connectivity



- Wi‑Fi 6E

- Bluetooth 5.3

- Ethernet

- USB I/O



Interaction & Features



- Voice interaction

- Speech recognition + TTS

- Facial recognition

- Display for expressions

- Teleoperation support



Applications



- Industrial automation

- Logistics & handling

- Healthcare & nursing

- Education & research

- Entertainment & performance

- Military training & simulation



WHAT IS NOT PUBLISHED



- IP rating

- Operating temperature range

- Full autonomy stack details

- Pricing for enterprise deployment

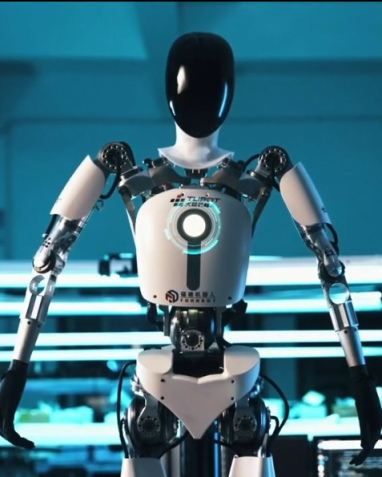

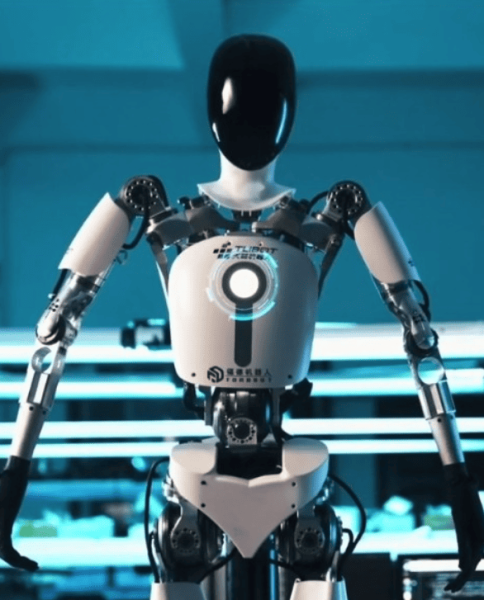

Image: @FDROBOT
