Summary:



RX1 is an open‑source humanoid robot platform developed by Red Rabbit Robotics. It is designed for research, education, and simulation, with full ROS1 support, a complete URDF model, inverse‑kinematics libraries, and Gazebo simulation packages.

The RX1 is not a commercial industrial humanoid — it is a developer‑friendly, modular, open‑source biped intended for robotics labs, universities, and hobbyists.



Editorial:



RX1 represents the classic open‑source ethos in humanoid robotics: transparent, modifiable, and built for experimentation.

Red Rabbit Robotics provides the full stack — URDF, IK solvers, motor libraries, and Gazebo simulation — making RX1 a strong platform for:



- gait research

- balance control

- whole‑body IK

- ROS‑based humanoid development

- simulation‑first robotics workflows



While it is not a mass‑manufactured hardware product, RX1’s complete open‑source codebase makes it a valuable reference design for anyone building or simulating humanoid robots.



Specifications:



Dimensions & Build

(No physical dimensions published.)

- Design Intent: Open‑source humanoid for research and simulation

- Construction:

  - Modular humanoid frame

  - Human‑scale dual‑arm configuration

  - URDF‑defined structure for simulation and IK



Mobility

- Locomotion: Bipedal (simulated)

- Capabilities:

  - Full Gazebo physics simulation

  - IK‑based motion planning

  - ROS1 bringup for hardware or sim



Degrees of Freedom

- Total DOF: Not published

- Arms: 7‑DOF per arm (based on servo assembly documentation)

- Hands: Optional 5‑finger tendon‑driven hands (open‑source design)



Actuation

- Actuator Type: Feetech servo motors

- Servo Counts:

  - 14× STS3215 for two arms

  - 8× SCS0009 + 4× STS3032 for two hands

- Capabilities:

  - Low‑cost, hobby‑grade actuation

  - 3D‑printed gearboxes for some joints



Manipulation

- Capabilities:

  - Dual‑arm manipulation

  - Dexterous 5‑finger hands (optional)

  - IK‑driven grasping in simulation

- Payload: Not published



Perception & Sensors

(No sensor suite published.)

RX1 is primarily a mechanical + software platform, with sensors left to the builder’s choice.



Compute & AI

- Software Stack:

  - ROS1

  - URDF model

  - Inverse‑kinematics package

  - Motor‑control libraries

  - Gazebo simulation

- AI: Not included; users integrate their own models



Battery & Power

- Power Source: Not included (user‑defined)

- Runtime: Not applicable



Connectivity

- ROS1 communication

- Standard ROS topics/services

- Simulation‑first workflow



Applications

- Robotics education

- Humanoid research

- IK and control‑algorithm development

- Simulation‑first prototyping

- Open‑source hardware experimentation



Pricing

- Open‑source (MIT License)

- Hardware cost depends on servo selection and 3D‑printed parts



Red Rabbit Robotics has NOT published:

- Height

- Weight

- Torque values

- Joint speeds

- Sensor specifications

- Battery specs

- Environmental ratings

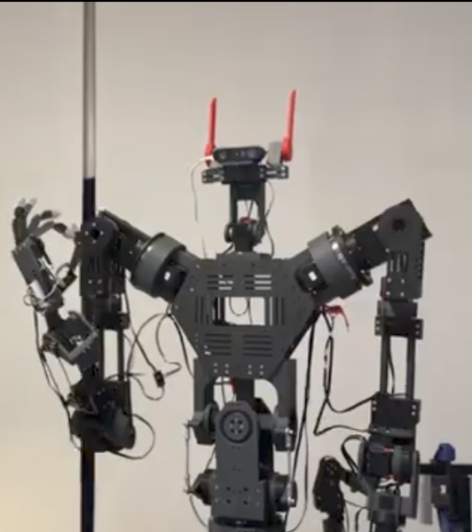

Image: @lethic
