SUMMARY:



RB‑Y1 is Korea’s first bimanual mobile manipulator, developed by Rainbow Robotics, the company behind the HUBO humanoid line.



It mounts a humanoid‑type dual‑arm system (7 DOF per arm) onto a high‑speed wheeled base, combined with a 6‑DOF single leg that adjusts body height and center of gravity.



The robot supports real‑time teleoperation, AI‑based learning, LiDAR navigation, and is sold as a research platform for advanced robotics and embodied‑AI development.



EDITORIAL:



RB‑Y1 is not a walking humanoid — it is a hybrid humanoid‑manipulator platform designed for industrial‑grade manipulation + mobile autonomy.



Rainbow Robotics built it using the same actuators and components found in their collaborative robots and AMRs, giving it industrial reliability.



The robot’s defining feature is its 22‑axis whole‑body control (excluding wheels), enabling:



- coordinated dual‑arm manipulation

- dynamic high‑speed driving

- sudden acceleration and turning

- safe center‑of‑gravity control via the 6‑DOF leg



It can also be taught by demonstration using a master–slave data arm, with built‑in self‑collision avoidance and a simulation environment for AI training.



RB‑Y1 is positioned as the first commercially available AI‑research humanoid platform, priced far below full humanoids while offering advanced manipulation and mobility.



SPECIFICATIONS:



Dimensions & Build



- Size: 600 × 600 × 1,400 mm (from catalog image metadata)

- Weight:

  - Upper body: 38 kg

  - Lower body: 51 kg

  - Total: ~89 kg (catalog)

- Category: Dual‑arm mobile humanoid manipulator

- Structure: Industrial‑grade actuators (same as RB collaborative robots)



Mobility



- Base type: High‑speed wheeled platform

- Max speed: 2.5 m/s

- Capabilities:

  - High‑speed turning

  - Sudden acceleration

  - Stable motion via 6‑DOF leg

- Vertical lift: >50 cm body height adjustment (via single leg)



Degrees of Freedom



- Arms: 7 DOF × 2 = 14 DOF

- Single leg: 6 DOF

- Additional joints: 2 DOF head/torso region (inferred from 22‑axis total)

- Total DOF (excluding wheels): 22 axes



Actuation & Manipulation



- Dual‑arm coordinated manipulation

- High‑precision actuators & encoders (industrial‑grade)

- Teleoperation: Real‑time master–slave control

- AI training:

  - Demonstration learning

  - Self‑collision avoidance

  - Simulation environment for AI policy training



Perception & Sensors



- LiDAR for autonomous navigation (optional)

- 3D recognition sensor (optional)

- Vision camera: Not included by default (catalog note)

- Sensor fusion for mobile manipulation (inferred from demos)



Compute & AI



- Real‑time control stack (developer manual)

- C++ / Python SDK

- Deterministic low‑latency communication

- AI‑ready platform with simulation + teleoperation training

- Designed for generative‑AI era robotics (company statement)



Battery & Power



- Battery: 48 V / 24 V DC (catalog metadata)

- Runtime: Not published



Connectivity



- Hotspot / Web UI access (developer manual)

- Network integration for teleoperation



Applications



- AI robotics research

- Dual‑arm manipulation studies

- Mobile manipulation

- Industrial automation R&D

- Human‑robot collaboration

- Simulation‑to‑real learning



Pricing



- Research platform: $80,000 USD

- Commercial platform: $120,000 USD

- Pre‑orders began May 2024; deliveries from October 2024



WHAT IS NOT PUBLISHED



- Payload per arm

- Battery runtime

- Compute hardware specs

- IP rating

- Long‑term durability metrics

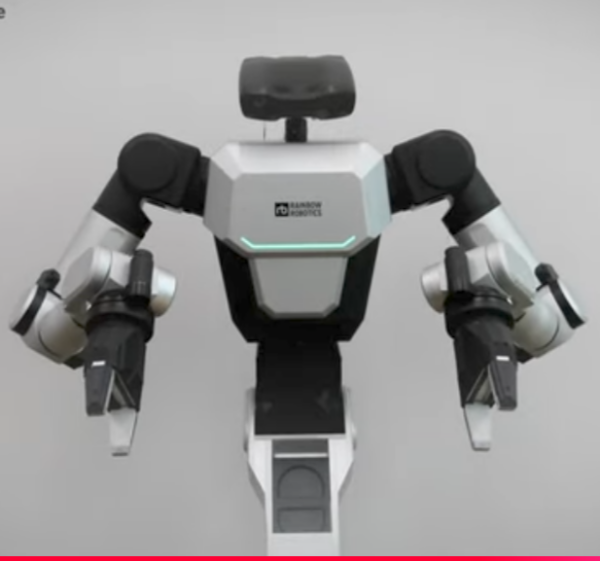

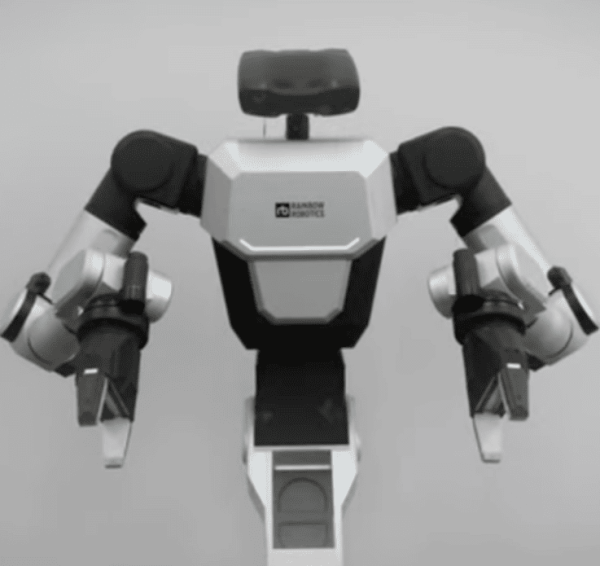

Image: @rainbowrobotics
