SUMMARY:

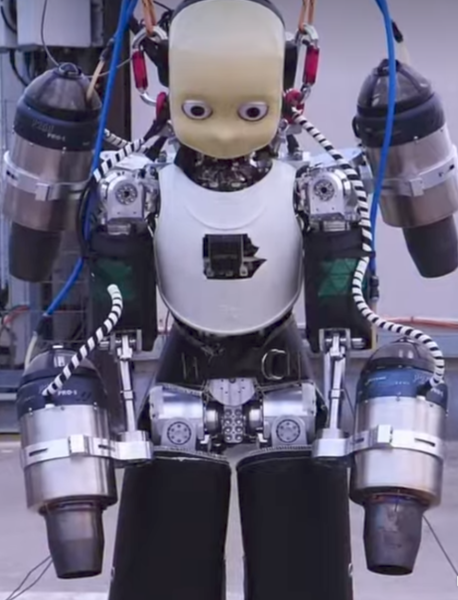

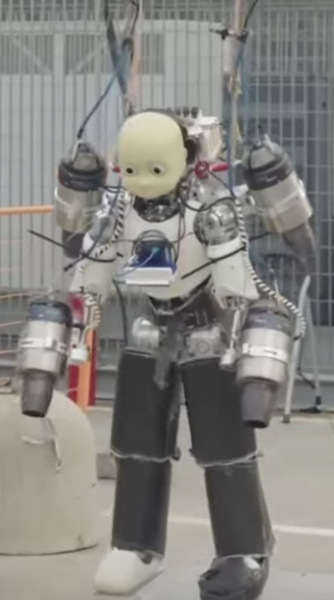

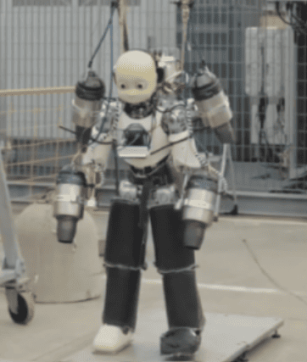

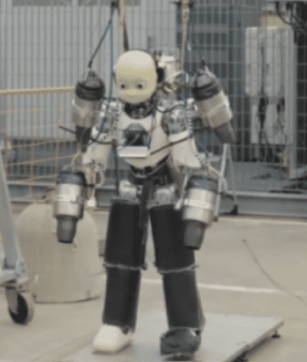

iRonCub3 is a jet‑powered flying humanoid robot developed by the Italian Institute of Technology (IIT) as the world’s first humanoid capable of controlled flight using miniaturized jet engines. Built on the latest generation of the iCub3 humanoid platform, iRonCub3 integrates four jet turbines—two mounted on the arms and two on a backpack module—to achieve vertical lift and mid‑air stabilization. It successfully performed its first flight in 2025, hovering approximately 50 cm above the ground while maintaining balance.



Designed for disaster response, extreme‑environment exploration, and multi‑modal mobility research, iRonCub3 represents a major milestone in aerial humanoid robotics.



EDITORIAL:



iRonCub3 is one of the most ambitious robotics projects of the decade: a humanoid robot designed not just to walk or manipulate objects, but to fly. Built on the iCub lineage—a platform originally created to match the size and proportions of a 5‑year‑old child—iRonCub3 extends the concept of embodied AI into the domain of aerial mobility.



The engineering challenge is extraordinary. Unlike drones, which are symmetric and optimized for flight, iRonCub3 must stabilize a human‑shaped body with uneven mass distribution, articulated limbs, and shifting center of gravity. IIT’s researchers solved this through a combination of jet‑thrust control, whole‑body dynamics, and real‑time state estimation, allowing the robot to maintain stable hover despite its complex geometry.



The result is a platform that blends humanoid intelligence with aerial capability, opening possibilities for search‑and‑rescue missions where ground robots cannot reach. iRonCub3 is not a consumer robot, nor a general‑purpose humanoid. It is a research‑grade flying humanoid, pushing the boundaries of what embodied AI can do in three dimensions.



SPECIFICATIONS:



Dimensions & Build

- Height: Based on iCub3 proportions (approx. child‑sized humanoid)

- Weight: Not published

- Design Intent: Jet‑powered flying humanoid for aerial mobility research

- Construction:

  - Built on iCub3 humanoid platform

  - Titanium spine and reinforced frame for thrust loads

  - Jet‑engine mounting points on arms and back



Note: No detailed structural load ratings or material composition published.



Mobility

- Locomotion: Aerial flight + humanoid posture control

- Flight System:

  - 4 jet engines (2 on arms, 2 on backpack)

  - Vertical lift and hover capability

- Flight Performance:

  - Hovered ~50 cm above ground during first flight tests

  - Stable mid‑air balance

- Ground Mobility: Standard iCub3 locomotion (limited walking)



Note: No published metrics for max altitude, flight duration, or thrust output.



Degrees of Freedom

- Total DOF: Based on iCub3 (approx. 53 DOF)

- Arms: Multi‑DOF humanoid arms

- Legs: Humanoid leg DOF (not used for flight)

- Head/Neck: Standard iCub3 articulation



Note: No official DOF breakdown published specifically for iRonCub3.



Actuation

- Actuator Type:

  - Jet turbines for lift

  - Electric actuators for humanoid joints

- Capabilities:

  - Whole‑body thrust vectoring

  - Real‑time stabilization

  - Jet‑assisted posture control



Note: No torque or joint‑speed values published.



Manipulation

- Capabilities:

  - Standard iCub3 arm articulation

  - Not designed for load‑bearing manipulation during flight



Note: No payload or grip‑force data published.



Perception & Sensors

Confirmed capabilities:

- Real‑time state estimation for flight control

- Whole‑body dynamics sensing

- Multi‑sensor fusion for stabilization



Note: No camera resolution, IMU specs, or depth‑sensor details published.



Compute & AI

- AI System:

  - Whole‑body control algorithms

  - Jet‑thrust control

  - Real‑time estimation and stabilization

- Capabilities:

  - Autonomous hover

  - Dynamic balance

  - Teleoperation support (iCub3 heritage)



Note: No CPU/GPU/TOPS details published.



Battery & Power

- Power Source: Jet fuel + onboard electronics

- Runtime: Not published

- Charging/Fueling: Not published



Note: No battery capacity or fuel consumption data published.



Connectivity

- Teleoperation support (iCub3‑based)

- Research‑grade control interfaces



Note: No protocol‑level details published.



Applications

- Disaster‑response research

- Extreme‑environment exploration

- Aerial humanoid mobility studies

- Multi‑modal locomotion research

- Embodied AI experimentation



Pricing

- Not published

- Research‑only platform



IIT has NOT published:

- Weight

- Payload

- Grip force

- Joint torque

- Joint speed

- Camera resolution

- IMU specifications



- Battery capacity

- Flight duration

- Max altitude

- Environmental ratings

- Fuel consumption

- DOF breakdown specific to iRonCub3
