SUMMARY



Atom Max is a full‑size humanoid robot developed by Dobot Robotics, featuring 41 degrees of freedom, dexterous 6–12 DoF hands, straight‑knee bipedal walking, and a 1500‑TOPS AI compute module for real‑time embodied‑AI control.

It is designed for industrial automation, precision manipulation, research, and VR/MR teleoperation



EDITORIALAtom Max is one of the most technically advanced Chinese humanoids in 2026, emphasizing:straight‑knee, energy‑efficient walkinghigh‑precision manipulation (±0.05 mm)transformer‑based dexterity (NDS)industrial‑grade embodied‑AI computeDobot positions Atom Max as a practical industrial and research platform, not just a demo robot.



EDITORIAL



Atom Max is one of the most technically advanced Chinese humanoids in 2026, emphasizing:



straight‑knee, energy‑efficient walking



high‑precision manipulation (±0.05 mm)



transformer‑based dexterity (NDS)



industrial‑grade embodied‑AI compute



Dobot positions Atom Max as a practical industrial and research platform, not just a demo robot.



📐 SPECIFICATIONS



Dimensions & Build



Height: ~1650 mm



Weight: ~58 kg



Structure: Aluminum + composite



Category: Full‑size humanoid



Degrees of Freedom



Total DoF: 41



Arms: 7 DoF each



Legs: 6 DoF each



Head: 2 DoF



Waist: 1 DoF



Hands: 6–12 DoF (dexterous hand option)



Mobility



Locomotion: Bipedal, straight‑knee walking



Max speed: 1.5 m/s



Gait system: Anthropomorphic Walking System (AWS)



42% lower energy consumption



Human‑like gait via imitation + reinforcement learning



Manipulation



Precision: ±0.05 mm



Dexterous hands: 6–12 DoF



Control system: Neuro‑Driven Dexterity System (NDS)



Transformer‑based



200 Hz control



Vibration suppression



Capabilities:



Tool use



Assembly



Fine manipulation



Multi‑spec object handling



Sensors



Vision:



Full‑HD binocular camera (60 FPS)



Intel RealSense D455 depth camera



Audio:



360° microphone array



Dual speakers



Optional:



Wrist RGB‑D cameras



3D LiDAR



Compute & AI



Base compute: Intel i5



Optional compute:



Intel i9 (24 cores / 32 threads)



16 GB GDDR6 GPU (41.15 TFLOPS FP32)



AI module: 1500 TOPS



AI systems:



ROM‑1 (Robot Operator Model‑1)



NDS (Neuro‑Driven Dexterity System)



Control modes:



Full‑body VR/MR teleoperation



Segmented teleoperation



Power



Battery life: ~2 hours



Charging: ~1 hour



Battery: 15 Ah



Applications



Industrial assembly



Lab automation



Precision manipulation



Service robotics



Multi‑robot collaboration



VR/MR teleoperation research



❌ WHAT IS NOT PUBLISHED



Torque per joint



IP rating



Pricing for Max configuration

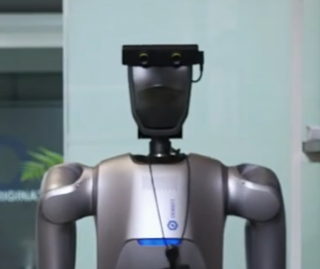

Image: @MuzixGroup
