SUMMARY



RAISE A1 is AgiBot’s first‑generation general‑purpose humanoid robot, launched in August 2023 and mass‑produced beginning in 2024.



Standing 175 cm and weighing 55 kg, it delivers 49+ DOF, 7 km/h walking speed, 5 kg per‑arm payload, and 200 TOPS onboard AI compute.



It is the foundational platform that enabled AgiBot to scale to 5,000+ humanoids shipped by late 2025, powering deployments in manufacturing, logistics, warehousing, research, and service robotics.



EDITORIAL



RAISE A1 is the robot that put AgiBot on the global map.



It introduced the company’s EI‑Brain architecture — a four‑layer embodied‑intelligence stack (Cloud Superbrain → Main Brain → Sub‑brain → Brainstem) — and WorkGPT, AgiBot’s proprietary multimodal LLM for mission‑level planning.



Mechanically, A1 pioneered PowerFlow quasi‑direct‑drive joints, delivering ~350 N·m peak torque at only 1.6 kg per joint, with liquid cooling, dual encoders, and <10:1 planetary reducers.



Its SkillHand system — 12 active + 5 passive DOF with visual fingertip sensors — remains one of the most advanced dexterous hands in its class.



RAISE A1 is not a demo robot; it has been deployed in real industrial pilots, including bolt tightening, vehicle inspection, material induction, and warehouse logistics.



SPECIFICATIONS



Dimensions & Build



• Height: 175 cm

• Weight: 55 kg

• Frame: Aluminum + composite structural materials

• Knee design: Reverse‑jointed for stability



Mobility



• Walking speed: 7 km/h

• Locomotion: Bipedal, reverse‑knee architecture

• Navigation: LiDAR‑based SLAM + visual odometry



Degrees of Freedom



• 49+ DOF total

• Hands: 12 active + 5 passive DOF



Actuation & Manipulation



• Joint system: PowerFlow quasi‑direct‑drive

• Peak torque: ~350 N·m per joint

• Arm payload: 5 kg per arm

• Deadlift capacity: 80 kg

• Hand sensors: Visual‑based fingertip tactile sensors



Perception & Sensors



• RGB‑D cameras

• LiDAR

• Microphone array

• IMU + gyroscope

• Force/torque sensors

• Proximity sensors



Compute & AI



• Onboard compute: 200 TOPS

• AI stack:

• EI‑Brain (Cloud → Main → Sub → Brainstem)

• WorkGPT multimodal LLM

• Hybrid model‑based + learning‑based control

• Software: Proprietary OS + ROS2 + Python + C++



Battery & Power



• Runtime: ~120 minutes

• Cooling: Liquid‑cooling circulation system



Connectivity



• Wi‑Fi (2.4/5 GHz)

• Ethernet

• Bluetooth

• USB / HDMI



Applications



• Manufacturing

• Logistics & warehousing

• Precision assembly

• Inspection

• Service robotics

• Research & education



Pricing



• $30,000 USD (2026 market listing)



WHAT IS NOT PUBLISHED



• IP rating

• Battery capacity (Wh)

• Exact torque per joint for all axes

• Thermal limits

• Long‑term durability metrics

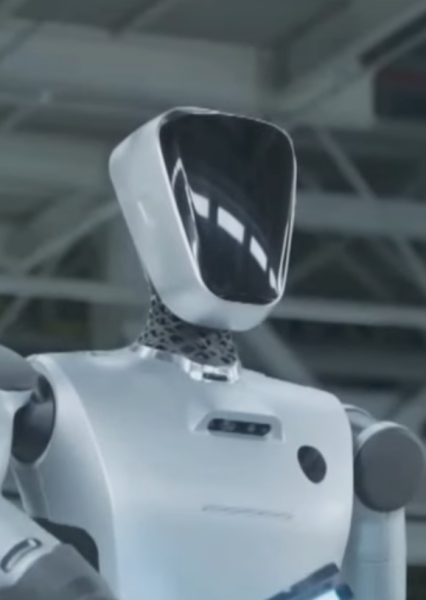

Image: @AIStackTeam
