Summary:



Figure 03 is the third-generation humanoid robot from California-based Figure AI. Designed for everyday environments, it performs real-world tasks like folding laundry, washing dishes, and watering plants. With a redesigned sensory suite, soft-touch materials, and Helix—Figure’s proprietary vision-language-action AI—Figure 03 is engineered for mass production and adaptive interaction in homes and workplaces.



Editorial:



In the crowded field of humanoid robotics, Figure 03 doesn’t shout—it demonstrates. Developed by Figure AI, this third-generation humanoid is a quiet revolution: a general-purpose robot that folds laundry, loads dishwashers, waters plants, and tidies rooms with uncanny grace. It’s not a sci-fi fantasy—it’s a working prototype, already performing real-world tasks in real time.



At the heart of Figure 03 is Helix, a proprietary AI system that fuses vision, language, and action. Unlike scripted robots, Helix enables Figure 03 to perceive, reason, and act fluidly in dynamic environments. It doesn’t just follow instructions—it understands context. This is made possible by a fully redesigned sensory suite, a next-gen vision system with double the frame rate and a 60% wider field of view, and a new hand system built for dexterity and safety.



Figure 03 is also a manufacturing milestone. With soft-touch materials, wireless charging, and battery safety upgrades, it’s built for homes—not just labs. And with a projected price around $20,000, it’s positioned not as a luxury toy, but as the Model T of humanoids—a mass-market machine for embodied intelligence.



Figure AI has raised over $1 billion and is moving fast. But Figure 03 isn’t just a product—it’s a philosophy: that robots should be useful, safe, and human-compatible. In a world of hype, Figure 03 folds towels—and expectations—with quiet precision.



SPECIFICATIONS:



Dimensions & Build

- Height: 170 cm

- Weight: 60 kg

- Design Intent: General‑purpose humanoid for home, workplace, and large‑scale deployment

- Construction: Lightweight frame with redesigned sensory suite, soft‑touch materials, and improved battery safety

- Developer: Figure AI (California, USA)

- Production Status: Engineered for mass manufacturing



Mobility

- Locomotion: Full bipedal walking

- Max Walking Speed: 1.19 m/s

- Capabilities:

  - Obstacle avoidance

  - Stand‑up‑from‑fall

  - Stair navigation

  - Dynamic locomotion

  - Home‑safe movement with soft goods and improved balance



Note: No incline capability, step height, or fall‑recovery timing published.



Degrees of Freedom

- Total DOF: 30 DOF

- Hands: 20 DOF total (5‑finger hands)



Actuation

- Actuator Type: Custom electromechanical actuators

- Key Capabilities:

  - Smooth, precise joint motion

  - Human‑equivalent strength

  - Redesigned hand system for Helix‑driven manipulation



Note: No joint torque or joint speed specifications published.



Manipulation

- Payload: 20 kg

- Hands: 5‑finger hands with advanced tactile sensing

- Capabilities:

  - Household tasks (laundry, dishes, cleaning)

  - Industrial and commercial manipulation

  - Fine‑grained control via tactile fingertip sensors (detects forces as low as 3 g)

  - Palm camera for close‑range manipulation



Note: No grip force or per‑finger DOF breakdown published.



Perception & Sensors

Confirmed capabilities:

- 6‑camera computer‑vision system (60% wider FOV than Figure 02)

- Palm camera for manipulation

- Advanced tactile fingertip sensors (3 g sensitivity)

- Redesigned sensory suite for Helix VLA



Note: No camera resolution, depth sensor type, IMU specs, or tactile map details published.



Compute & AI

- AI System: Helix — Figure’s proprietary Vision‑Language‑Action model

- Compute Platform: Dual embedded GPUs

- Operating System: Ubuntu Linux

- Capabilities:

  - Pixel‑to‑action learning

  - Real‑time motion planning

  - Natural‑language reasoning

  - Home‑safe autonomy

  - Cloud‑based updates and diagnostics



Note: No TOPS, GPU model, or memory specifications published.



Battery & Power

- Battery Life: 5 hours

- Power Source: Electric

- Charging: Wireless charging supported



Note: No battery capacity or charge‑time data published.



Connectivity

- Cloud‑connected AI updates

- Remote diagnostics



Note: No Wi‑Fi/Bluetooth/5G specifications published.



Applications

- Home assistance

- Commercial service tasks

- Industrial support

- Adaptive manipulation

- General‑purpose robotics research

- Real‑world task automation



Pricing

- $130,000



Figure AI has NOT published:



Mobility

- Step height

- Max incline

- Turning radius

- Fall‑recovery time



Manipulation

- Grip force

- Joint torque

- Joint speed

- Detailed hand DOF breakdown



Sensors

- Camera resolution

- Depth sensor type

- Field of view (exact degrees)

- Microphone array

- IMU specifications

- Tactile sensor layout



Compute

- GPU model

- TOPS

- Memory

- Real‑time control hardware

- SDK/API availability



Battery & Power

- Battery capacity

- Charge time

- Power draw



Environmental Ratings

- Operating temperature

- Humidity tolerance

- IP rating

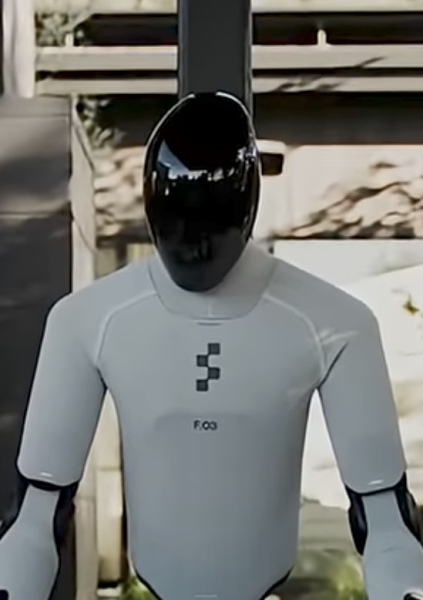

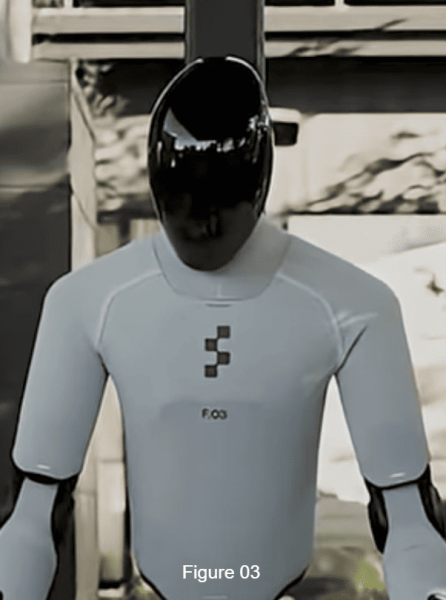

Image: interestingengineeringie
