SUMMARY:



The Unitree H1 is a full‑size universal humanoid robot developed by Unitree Robotics, standing ~180 cm tall and weighing ~47 kg. It is one of the fastest humanoids ever demonstrated, achieving 3.3 m/s running speed with potential mobility above 5 m/s.



It features 360 N·m knee torque, 189 N·m/kg torque density, 3D LiDAR + depth camera, and an 864 Wh hot‑swappable battery, making it a leading platform for locomotion research, embodied AI, and industrial‑grade mobility.



EDITORIAL:



Unitree’s H1 is arguably the best price‑to‑performance full humanoid on the market. Its combination of high‑torque PMSM actuators, industrial‑grade crossed‑roller bearings, and lightweight 47 kg frame gives it exceptional agility.



The robot’s 3.3 m/s running speed set a world record for commercial humanoids, and its LiDAR‑based 360° perception enables autonomous navigation in complex environments.



H1 is widely adopted in research labs, universities, and embodied‑AI teams due to its ROS2 support, open SDK, and rapid OTA updates.



SPECIFICATIONS:



Dimensions & Build



- Height: ~180 cm

- Weight: ~47 kg

- Body dimensions: 1520+285 mm × 570 mm × 220 mm

- Frame: Industrial‑grade crossed‑roller bearings

- Category: Full‑size humanoid



Mobility



- Walking speed: 1.5 m/s

- Running speed: 3.3 m/s (world record class)

- Potential mobility: >5 m/s

- Locomotion: Bipedal, high‑agility gait



Degrees of Freedom



- Legs: 5 DOF each (H1)

- Arms: 4 DOF each (expandable)

- Total DOF: ~18–20 depending on configuration

- H1‑2 variant:

  - Legs: 6 DOF each

  - Arms: 7 DOF each



Actuation & Manipulation



- Joint motors: Unitree M107 PMSM

- Peak torque density: 189 N·m/kg

- Knee torque: 360 N·m

- Hip torque: 220 N·m

- Ankle torque: 59 N·m

- Arm joint torque: 75 N·m

- Hands: Optional dexterous hands (Inspire, Unitree)



Perception & Sensors



- 3D LiDAR (360° depth sensing)

- Depth camera (Intel RealSense class)

- IMU

- Joint encoders

- Force sensors



Compute & AI



- Compute: Intel Core i5/i7 (configurable)

- Software: ROS2 + Unitree SDK

- OTA updates: Supported

- Capabilities:

  - Whole‑body control

  - Real‑time locomotion

  - SLAM + 3D mapping



Battery & Power



- Battery: 864 Wh, hot‑swappable

- Runtime: 1.5–2 hours (typical)

- Charging: ~2–3 hours





Connectivity



- Wi‑Fi

- Bluetooth

- Cloud monitoring supported



Applications



- Locomotion research

- Embodied‑AI development

- Industrial R&D

- Human‑robot interaction

- Academic robotics programs



Pricing



- Range: $66,770 – $94,905 depending on vendor and configuration

- Typical research price: ~$90,000



WHAT IS NOT PUBLISHED



- IP rating

- Payload per arm

- Thermal management details

- Long‑term durability metrics

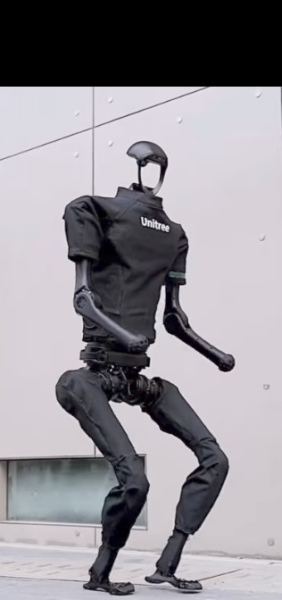

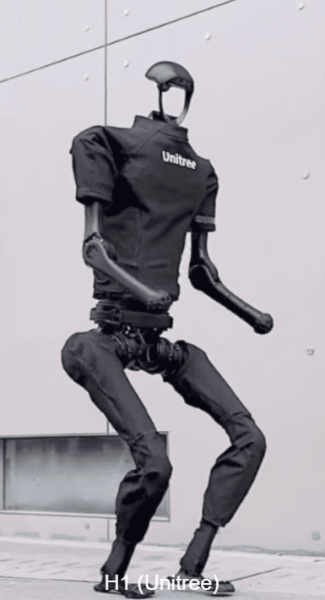

Image: @Top3DShop-Inc
